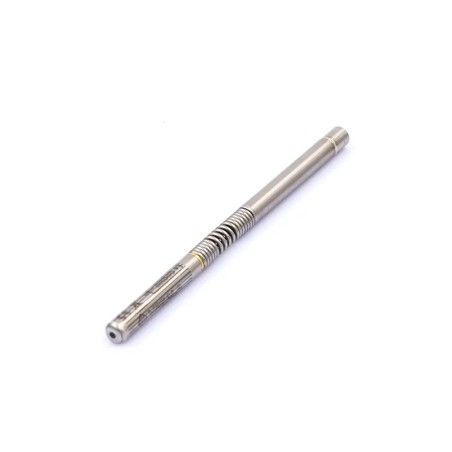

MicroSonde VMS6-33, Ø6.4 mm, 33kHz

L110-00104
Vesala

MicroSonde VMS6-33 is flexible and only 6.4mm diameter transmitter sonde for tracing microduct and other tube blockages. VMS6-33 is intended to be used with cable tracers and pipe locators using the 33kHz tracing frequency.

Description

MicroSonde VMS6-33 is flexible and only 6.4mm diameter transmitter sonde for tracing microduct and other tube blockages. VMS6-33 is intended to be used with the cable tracers and pipe locators using the 33kHz tracing frequency.

The VMS6-33 construction includes the transmitter unit and battery compartment, which are connected together. The semi-rigid construction helps the device pass duct curves, joints and obstacles easily. This way constructor can validate if ducts are usable for new cables or not. VMS6-33 is intended for ducts having inner diameter of 9 mm or more.

There is a blinking red light at the tip of the transmitter indicating transmitter operation. The disposable lithium battery unit gives energy for approx. 6 hours total usage.

MicroSonde VMS6-33 diameter is 6.4mm and length with mounted battery compartment 114mm.



Each set includes:

  • VMS6-33 Transmitter sonde
  • Battery compartment with M5 female mounting thread
  • 3.0V lithium battery BR535, 2 pcs
  • Plastic storage box SB9
  • Quick guide
Product Details
L110-00104
V19010
New

Data sheet

Dimensions
Ø6.4 mm x 114 mm
Weight
14 g
Battery
BR535
Operating time
6 h
Protection class
IP67 / IK07
Max. air pressure
6 bar
Max. hydraulic pressure
4 bar
Thread
M5 (F)
Frequency
33 kHz
Operating distance (free air)
4.7 m
Operating distance (cast iron duct)
0 m
Min diameter of duct
9 mm
