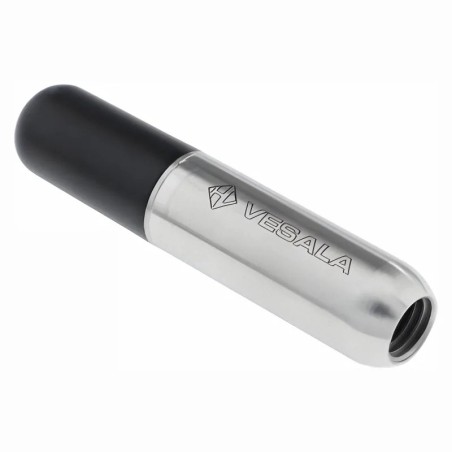

Sonde PL18-33, Ø18 mm, 33kHz, M6F, M10M & M12F

Using a pipe transmitter sonde

PL18-33 powers on when the battery compartment is turned to the transmitter section. Sonde is attached to the push rod (snake) with the threaded sleeve of the battery compartment or with tape. After that the sonde is pushed into the target pipe using the push rod.

To avoid loosing signal e.g. at corners the sonde is traced with a cable tracer receiver along as it moves ahead. If sonde hits an obstacle or blockage, it´s possible to define the location and depth very accurately, which reduces unnecessary digging.

PL18-33 has a red power-on LED at the end of the sonde. LED goes off if battery is weak. PL18-33 diameter is 18.2mm and length with standard battery compartment 85mm. Transmitted signal is continuous 32.768 kHz.
